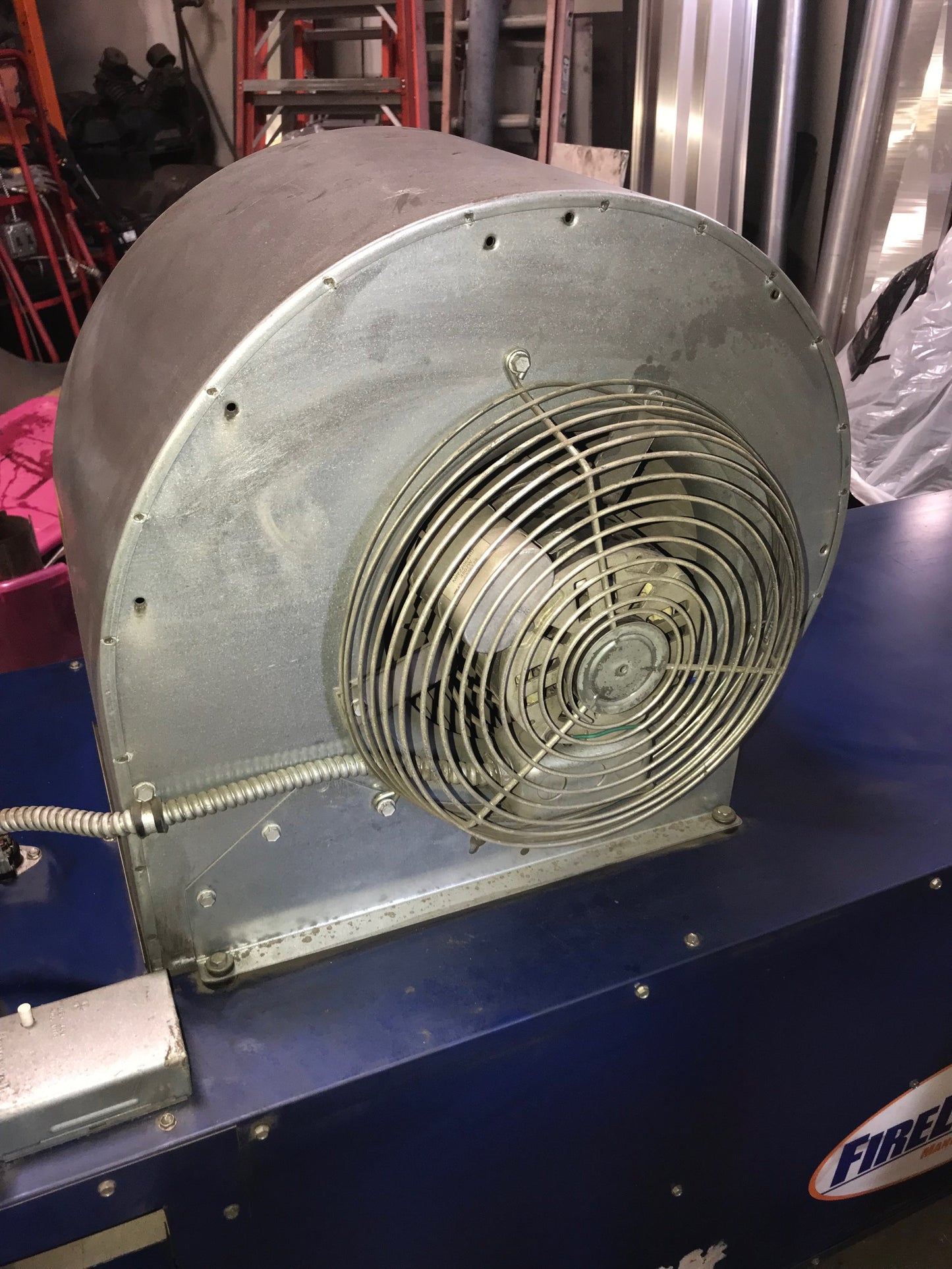

Refurbished Firelake 245 (245,000 BTU Furnace)

This furnace is a reconditioned, pre-owned Firelake 245. The furnace has been cleaned, tested, and fired. All of our used furnaces come with a one-year parts warranty. Installation not included.  Allow 3-7 days for shipping.

SPECIFICATIONS

Input (approx. BTU/hr.)
245,000

Output (approx. BTU/hr.)

188,000

Stack size8″ / 20.3 cm

Shipping Weight

500 lbs./227 kg.

Heater dimensions (L x W x H)
Includes outside measurements of fan and burner41″ x 26″ x 99.5″

Duct Opening18″ x 18″

Electrical requirements (maximum circuit protection)30A (15A for export)

Approx. fuel consumption

1.73 GPH

Blower CFM

2780

Outlet Air Temperature

180 F

Compressed air requirements2 CFM @ 40 PSI / .057 m3/min.@.28Mpa

Agency listings

UL, C-UL

Patents5,950,616

Fuels

Crankcase oil, transmission and hydraulic fluids, as well as other petroleum-based lubricants (any weight combinations up to SAE 50 as well as #1 and #2 fuel oil.)

Oil transfer pump18 GPH @ 35 PSI (68 LPH @ .24 Mpa)
